Description

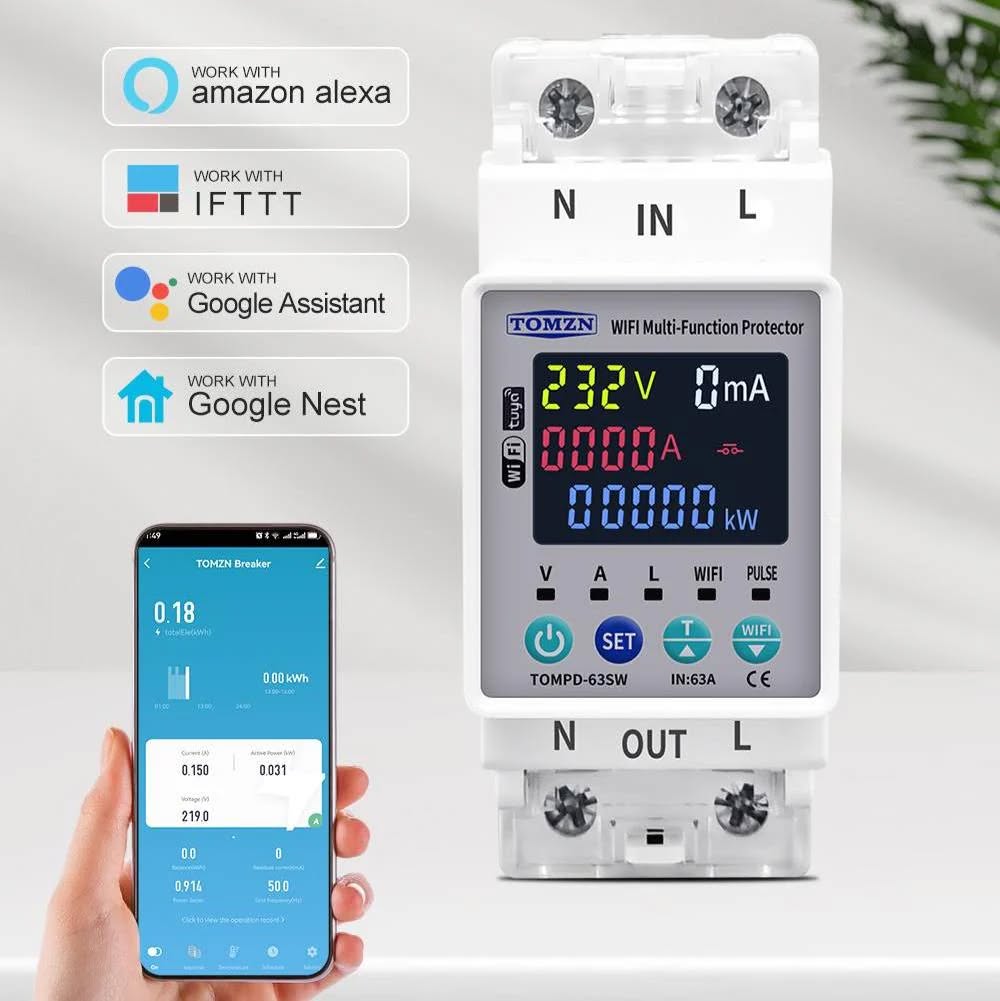

Remote ON/OFF control from anywhere using a smartphone

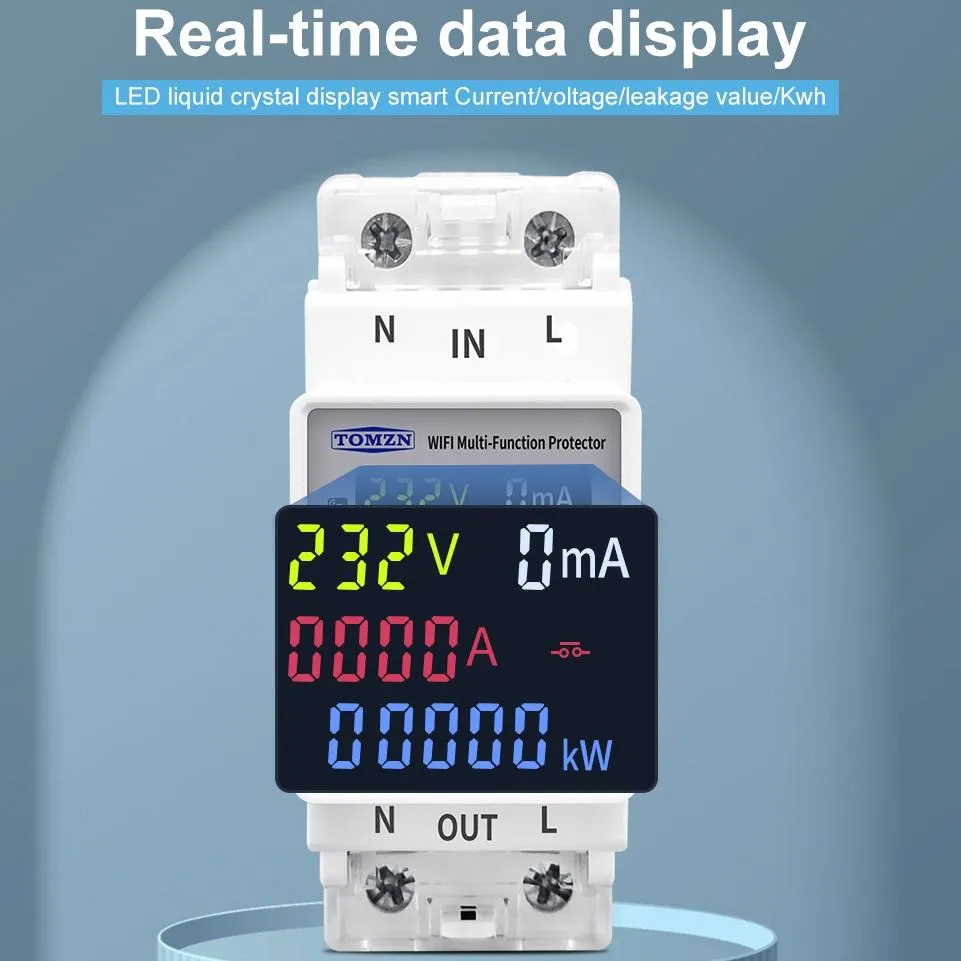

Real-time monitoring of voltage, current, power (kWh), and leakage current
App-based programmable timer via TUYA Smartlife
Adjustable protection for overvoltage, undervoltage, overcurrent, and leakage current
Supports both 110V and 230V input (L + N)
Automatic power reconnection with delay timer
Manual and app control supported for protection settings
Compact design suitable for standard circuit panels
Calibration options for voltage, current, and power
Low power consumption operation
Model: TOMPD-63SW (WiFi), TOMPD-63s (Non-WiFi)
Rated Voltage: 80V–300V AC, 50/60Hz
Rated Current: 1A–63A (adjustable)
Voltage Protection:
Overvoltage: 120V–300V (default 270V)
Undervoltage: 80V–210V (default 170V)
Overcurrent Protection: 1A–63A (default 40A)
Leakage Protection Range: Adjustable (value based on model)
Reconnect Delay: 1–500s (default 30s)
Action Time: 1–30s (default 1s)
Calibration Range: ±9.9%
Power Consumption: Less than 2W
App Support: TUYA Smartlife (WiFi model only)
Adjustable Protection Settings:
Under-Voltage Protection: Adjustable range from 85V to 220V (default: 170V).
Over-Voltage Protection: Adjustable range from 110V to 300V (default: 275V).
Over-Current Protection: Adjustable range from 1A to 63A (default: 63A).
Earth Leakage Protection: Adjustable range from 10-300mA.
Temperature Protection: Can be set in the app or manually adjusted.
Ensures full protection against electrical hazards
Helps reduce electricity bills by monitoring real-time usage
Suitable for home, office, and industrial power systems
Ideal for smart home automation systems
Customizable protection levels ensure flexible safety management
Compact and easy to install in existing breaker panels
